Empowering Salesforce Workflows: A Guide to Seamlessly Connect Lightning Web Components with Screen Flows

Introduction:

Salesforce continues to empower businesses with its robust suite of tools, enabling users to create seamless and efficient workflows. In this blog post, we'll explore the integration of Lightning Web Components (LWC) with Screen Flows—a powerful combination that enhances your Salesforce applications with dynamic and interactive user interfaces. Let's dive into the step-by-step process of connecting an LWC component to a Screen Flow.

How to Connect an LWC Component to a Screen Flow ?

To connect a Lightning Web Component (LWC) to a Screen Flow, grant access in the metadata file by including the following elements: <target>lightning__FlowScreen</target> and <targetConfigs></targetConfigs>. Add the necessary properties to the metadata file. Once this is done, you'll be ready to import your component into the Screen Flow. You will find the option to import the file as a custom component, allowing you to seamlessly integrate it into your flow.


For Example :

The operation we will be performing is saving contact information, such as First Name, Last Name, and the Related Account Record, on the Contact object. This will be triggered by clicking the 'Next' button (Action button).

Step 1:  Set Up Your Salesforce Environment -

Set up your VS Code and org.


Step 2: Create a Lightning Web Component -

Create the Lightning Web Component that will serve as the building block for your Screen Flow. Use the Salesforce CLI to create the component, including the appropriate HTML, CSS, and JS files, and define the component's structure.

e.g. :

Navigate to LWC component


Step 3: Design Your Lightning Web Component -

Design the LWC to capture the data and input required for your Screen Flow. Consider the elements that need to be interactive within the flow, and structure your component accordingly. Ensure that the component’s attributes and methods align with the data and actions needed for the flow.


Here we took three input fields:

1: lightning-input for First Name
2: lightning-input for Last Name
3: lightning-record-picker for the Account object

⦁ Attributes
i: value: Used to obtain and manipulate user input in JavaScript.
ii: type: Specifies the type of data being accepted.
iii: onchange: A function that captures input changes.
iv: object-api-name: Retrieves the object name dynamically

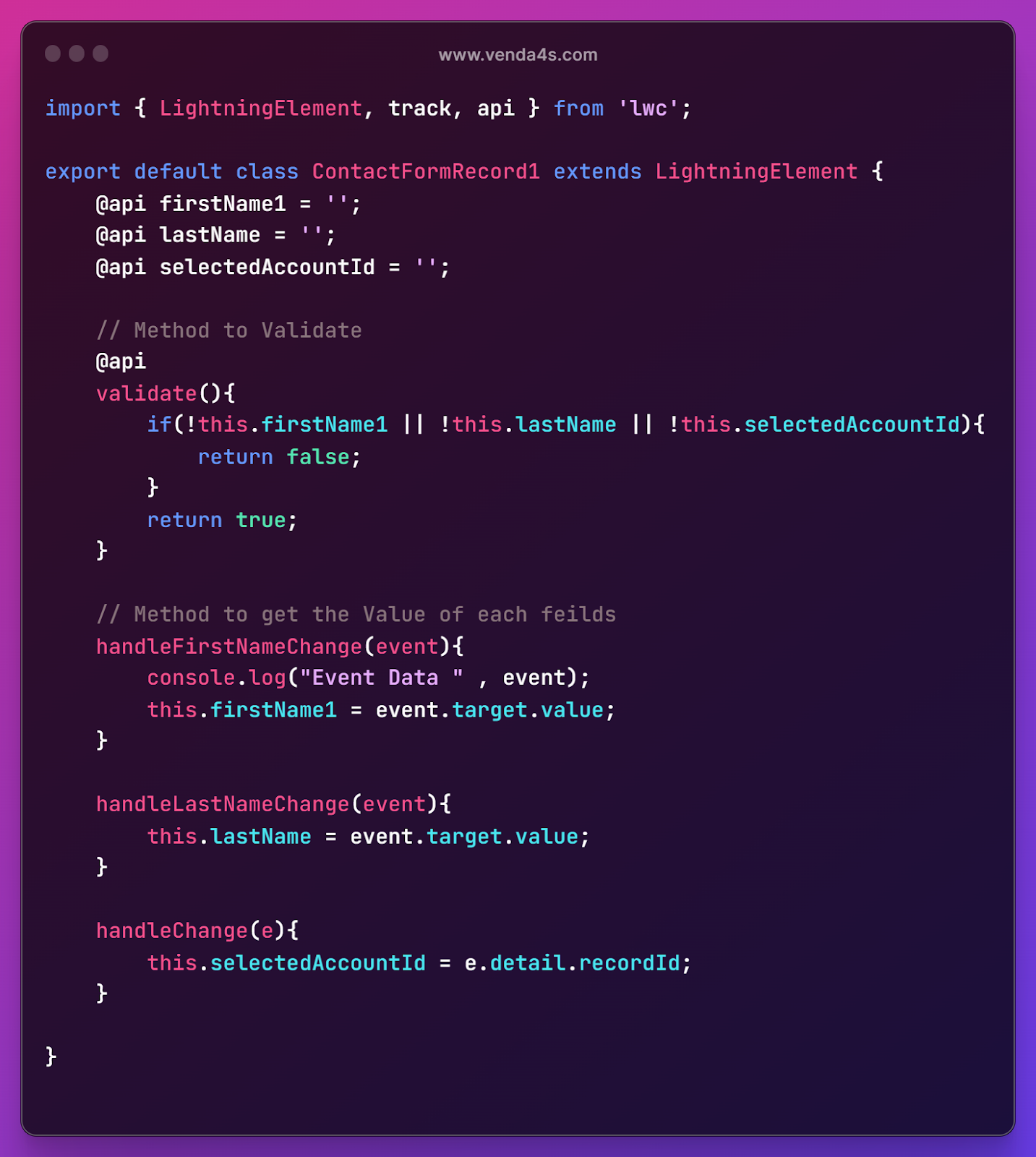

@api
validate() function is called to check all the validations we want to perform.

 Metadata file to connect with the screen flow.


In this example, we will connect our component to the Screen Flow using the target

<target>lightning__FlowScreen</target> Enable the access in Screen Flow
<targetConfigs></targetConfigs> Allows you to define different configurations for the same Lightning Web Component based on where it is used. This is especially useful when a component is used in various contexts, such as in a Flow Screen, App Page, or Record Page.

Deploy your component to the Salesforce org.

Step 4: Create a Screen Flow -

Import your component from the Custom Components list and fill in the values for the fields on the right side of the popup.



 Now Create Record & fill required fields



Step 5:  Test Your Integration -

Before deploying your solution, thoroughly test the integration by running the Screen Flow. Validate that the data flows correctly between the Screen Flow and the Lightning Web Component. Use debug logs and the Salesforce Developer Console to troubleshoot any issues that may arise.

Step 6: Deploy Your Solution -

After completing your integration, deploy the Screen Flow and the associated Lightning Web Component to your Salesforce org. Ensure that you adhere to best practices for deployment, such as using version control and conducting proper testing.


Conclusion:

Integrating Lightning Web Components with Screen Flows opens up a world of possibilities for creating dynamic and user-friendly experiences within your Salesforce applications. By following these steps, you can combine the power of LWC with the flexibility of Screen Flows, providing your users with a seamless and intuitive interface for interacting with your Salesforce data and processes. Start leveraging this integration today to enhance the efficiency and usability of your Salesforce applications.
